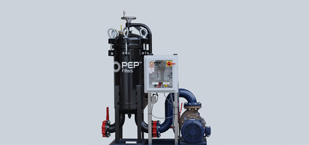

BAG FILTERS

Highlights of the BAG FILTERS specifications include the following:

• Pre-engineered turnkey filtration package complete with skid assembly, epoxy coated carbon steel vessel, NEMA 4X UL listed control panel, PVC face pipe, cast iron pump
• ASME-U stamped vessel up to 300 PSI
• (304 / 316) Stainless steel vessel
• Dual bag filter automatic change-over
• Upgraded PLC controller for dual bag filter automatic change over
• Custom designs are available to meet your specific needs
• Economical filtration solution
• Ideal for low flow, low pressure or zero discharge applications
• Short delivery times
• Plug and play configuration

Features

• Stand alone vessels or pre-engineered turnkey designs
• Flows up to 2,000 GPM
• Single or multiple vessel configuration
• Standard operating pressures to 150 psi
• Uses standard commercially available #1 & #2 bags
• Quick opening swing bold lid for simple O-ring seal and quick bag change-outs

When your next project requires bag filtration we encourage you to consider one of PEP’s pre-engineered systems.  Each filter is designed for quick and easy installation.  Just pipe it in and wire to a single point contact and you are ready to produce clean water or other filtered fluids.

Each PEP BGSF series filter removes suspended solids from water and other process liquids. Contaminants such as pipe scale, grit, wax, metal chips, rust, and airborne debris are found in a broad range of particle sizes. PEP offers a variety of bags to capture particles ranging from 5 to 800 microns.
