ICS2

Highlights of the ICS2 specifications include the following:

• ASME-U stamp
• Automatic purge and recovery options for separator only configuration
• Removable service lid
• Plug and play installation
• Low cost filtration solution
• No moving parts
• Long lasting filtration

Features

• Turnkey filtration package complete with painted carbon steel skid, and external vessel, NEMA 4X UL listed control panel, PVC face pipe, cast iron pump
• Flows from 10-5,000 GPM
• 150 psi operating pressure rating
• Non-removable lid standard removable lid available
• Available as Tower Clean Package, including pump, Nema 4X control panel, skid mounted with variety of purge and recovery options

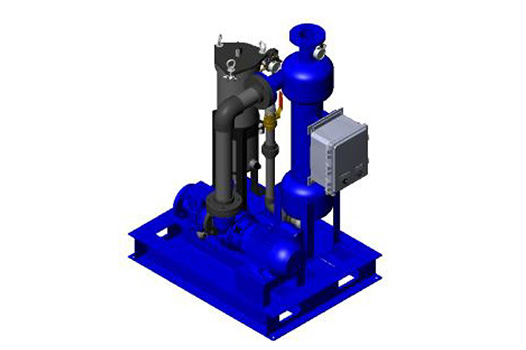

The InterSeptor Centrifugal Separator (ICS2) by PEP Filters provides simple yet reliable filtration and separation typically down to 75 micron.  The ICS2 is primarily used for the removal of sand and other high load particulate matter in multiple market vertices.  The separator is most efficient at removing particulates with a specific gravity ≥ 2.6.  Each separator can be configured as a pre-engineered skid mounted system or as a standalone filter.


The ICS2 can be effective in removing smaller suspended particles as well (40 micron and larger) depending on the specific gravity of the particle and the viscosity of the carrier fluid, retention as small as 5 microns is possible.
